Success Hackintosh macOS Catalina 10.15 Build 19A583 at Dell XPS 15 9370
Specification :
- Processor : Intel Core i5-8250U
- RAM : 8GB DDR3 PC14900 / 1867Mhz
- IGPU : Intel HD 620
- Storage : 1x NVME SSD Lite-On 256GB
- Ethernet : No Built-In Ethernet
- Wifi : Atheros AC 1435 + Bluetooth
- USB : Intel Chipset / USB-C Only + Thunderbolt
- Audio Codec : Realtek ALC299
- Touchscreen : Yes
- Touchpad : DELL07E6D I2C Interface
- Display Size : 13 Inch
- Monitor Resolution : 4K (3840 x 2160)
- Boot Mode : UEFI
- Clover version : r5096
- OS Version : macOS Catalina 10.15 Build 19A583
What's Working??

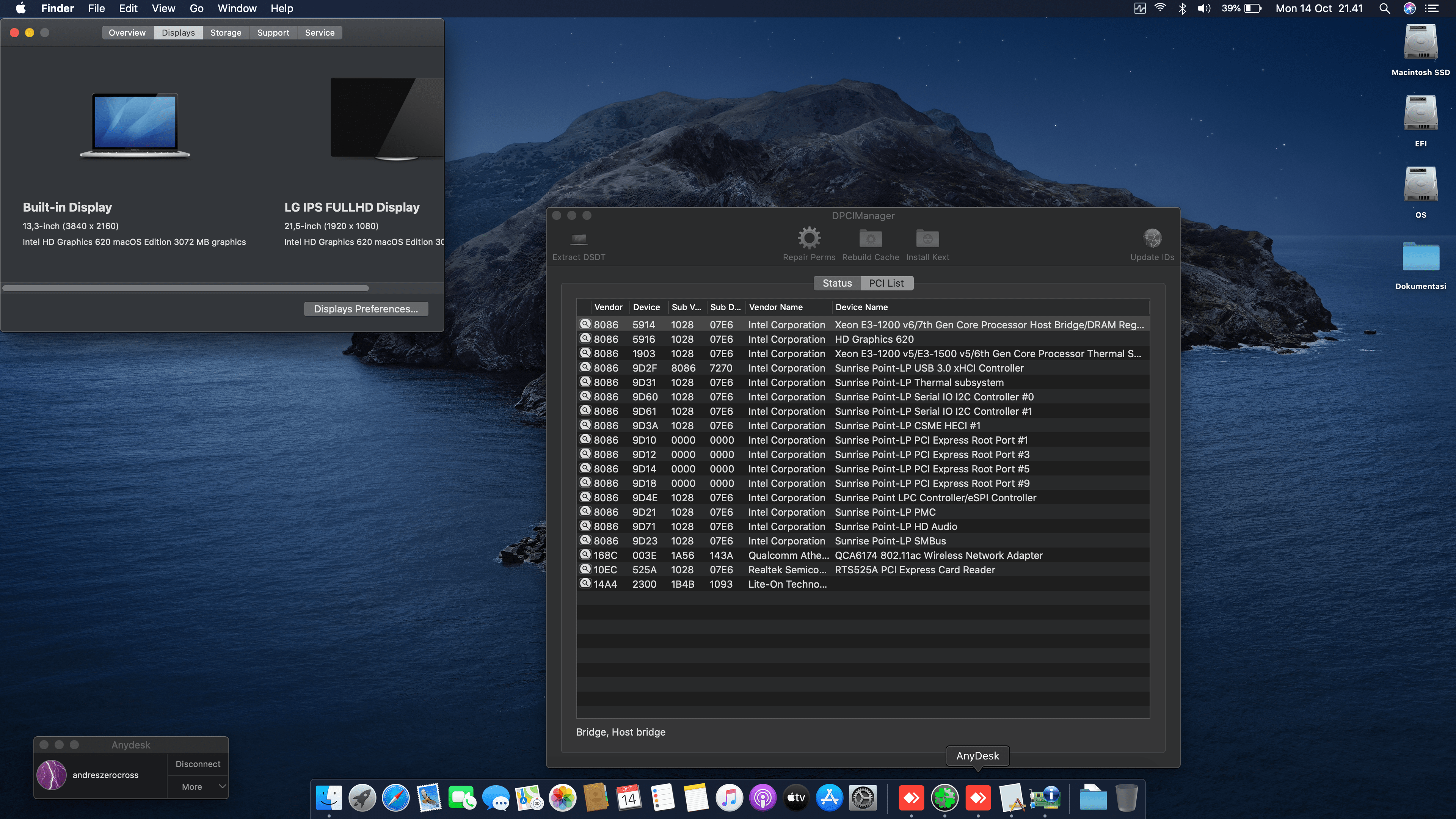

- QE/CI Graphics Of IGPU HD 620
- Restart, Sleep and Shutdown

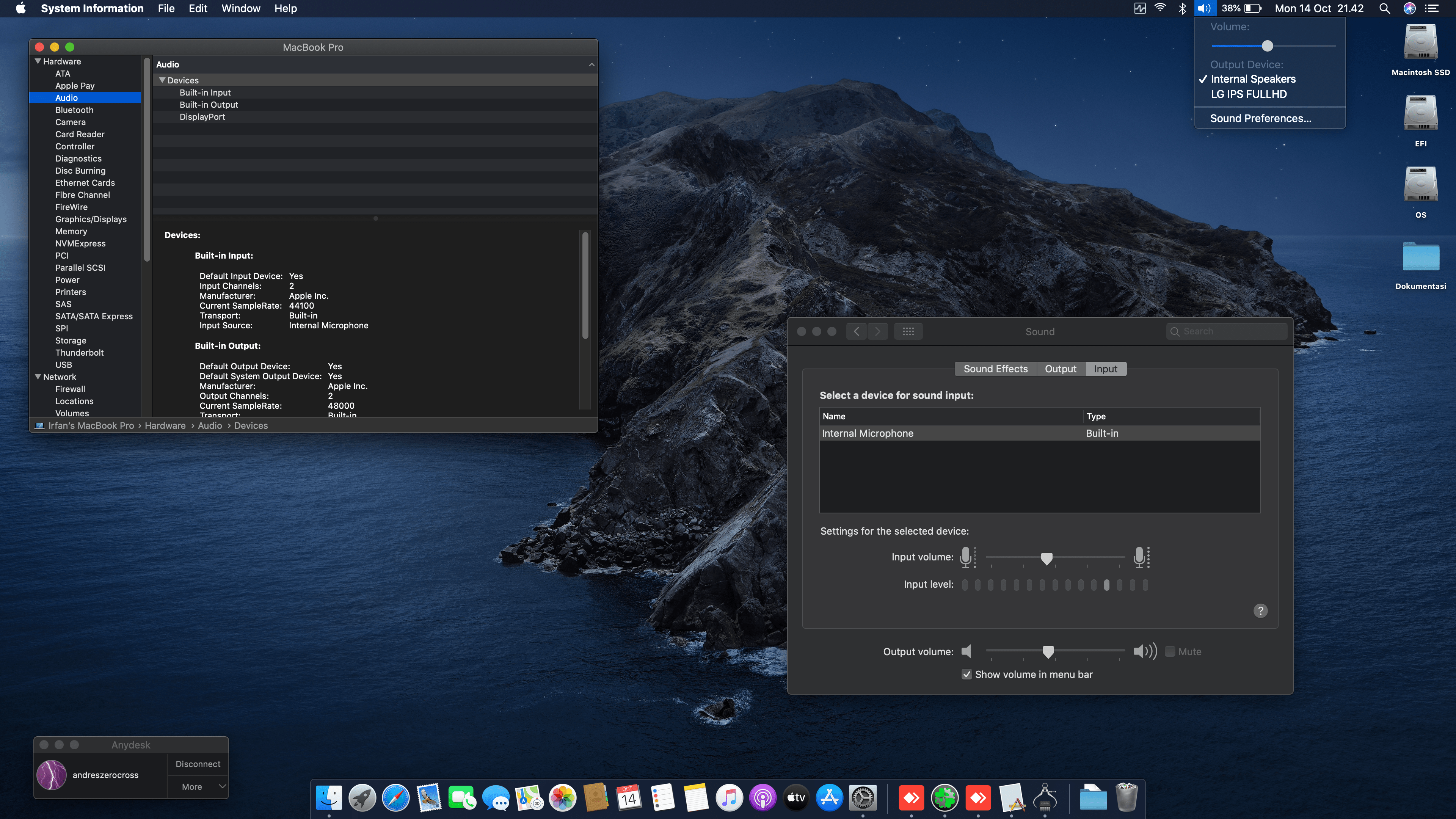

- Internal Speaker, Headphone audio and Internal Mic
- Brightness
- FN + Brightness Button Up / Down (Re-Set ini Shortcut)

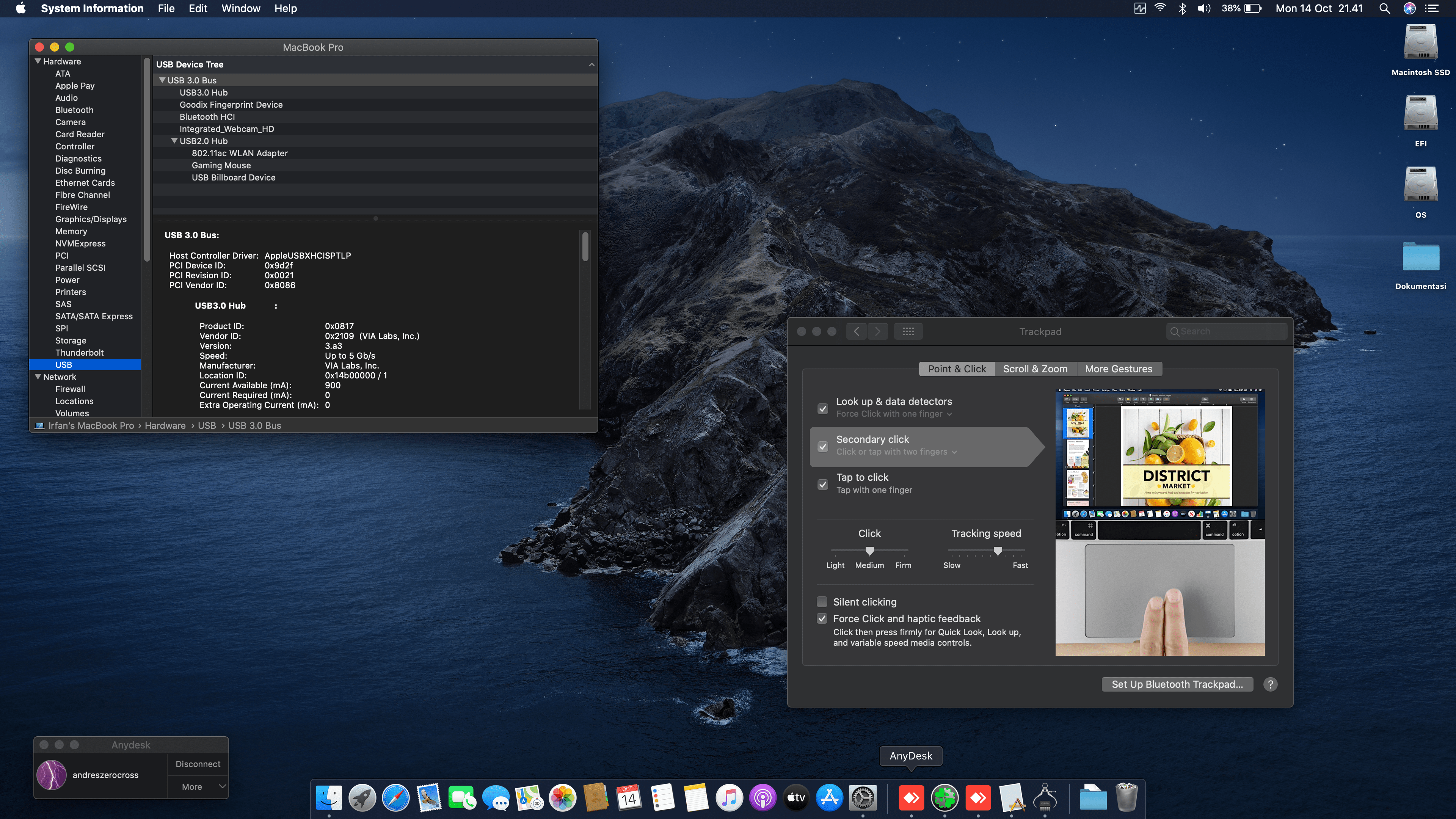

- Touchpad
- Touchscreen
- Bluetooth
- USB-C to HDMI for External Monitor
- Null Ethernet for Appstore Login

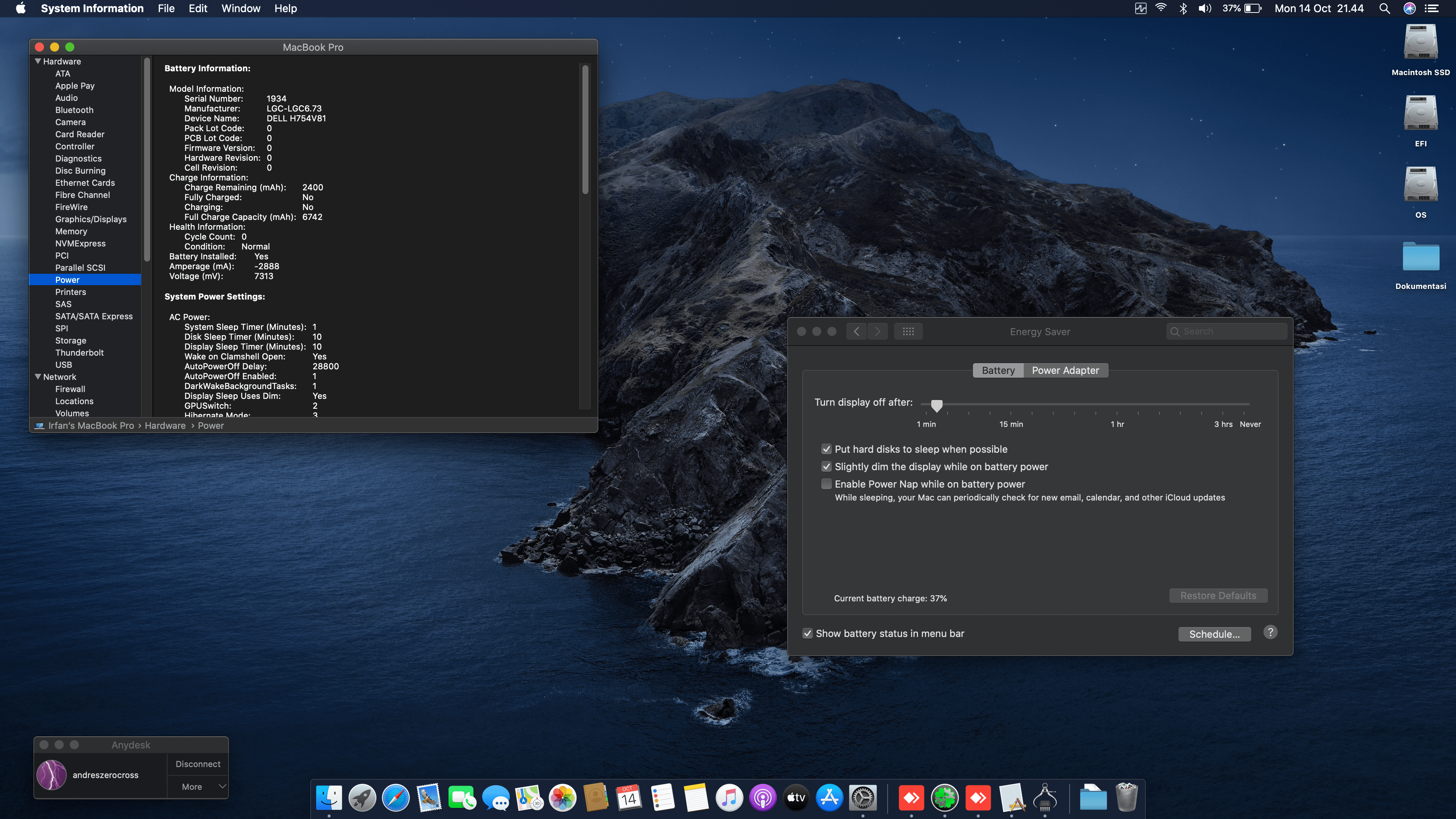

- Battery Indicator
- All Port USB and Super Speed Port (All of USB-C Port)
- Etc
What's not working?
- Wifi (Atheros AC 1435 is not supported by Hackintosh)
- Etc
Bug
- When put USB HUB to Thunderbolt = No Hotplug, just can remove USB Device from USB Hub but never remove USB Hub from Thunderbolt port. But USBC HUB to HDMI always work
Keep Hackintosh and Keep Hair Fall !!!
![Dell XPS 9370 [KabyLake R Intel HD 620 + I2C] 1](/images/Articles/Dell%20XPS%209370%20[KabyLake-R%20-%20Intel%20HD%20620%20+%20I2C]-1.png)
![Dell XPS 9370 [KabyLake R Intel HD 620 + I2C] 2](/images/Articles/Dell%20XPS%209370%20[KabyLake-R%20-%20Intel%20HD%20620%20+%20I2C]-2.png)
![Dell XPS 9370 [KabyLake R Intel HD 620 + I2C] 3](/images/Articles/Dell%20XPS%209370%20[KabyLake-R%20-%20Intel%20HD%20620%20+%20I2C]-3.png)
![Dell XPS 9370 [KabyLake R Intel HD 620 + I2C] 4](/images/Articles/Dell%20XPS%209370%20[KabyLake-R%20-%20Intel%20HD%20620%20+%20I2C]-4.png)
![Dell XPS 9370 [KabyLake R Intel HD 620 + I2C] 5](/images/Articles/Dell%20XPS%209370%20[KabyLake-R%20-%20Intel%20HD%20620%20+%20I2C]-5.png)
![Dell XPS 9370 [KabyLake R Intel HD 620 + I2C] 6](/images/Articles/Dell%20XPS%209370%20[KabyLake-R%20-%20Intel%20HD%20620%20+%20I2C]-6.png)
![Dell XPS 9370 [KabyLake R Intel HD 620 + I2C] 7](/images/Articles/Dell%20XPS%209370%20[KabyLake-R%20-%20Intel%20HD%20620%20+%20I2C]-7.png)
![Dell XPS 9370 [KabyLake R Intel HD 620 + I2C] 8](/images/Articles/Dell%20XPS%209370%20[KabyLake-R%20-%20Intel%20HD%20620%20+%20I2C]-8.png)
![Dell XPS 9370 [KabyLake R Intel HD 620 + I2C] 9](/images/Articles/Dell%20XPS%209370%20[KabyLake-R%20-%20Intel%20HD%20620%20+%20I2C]-9.png)
![Dell XPS 9370 [KabyLake R Intel HD 620 + I2C] 10](/images/Articles/Dell%20XPS%209370%20[KabyLake-R%20-%20Intel%20HD%20620%20+%20I2C]-10.png)
